Accessori pneumatici

Per test e sperimentazione aerodinamica e fluidodinamica

Scanivalve produce una vasta gamma di accessori specializzati, appositamente progettati per supportare le applicazioni di misura e sperimentazione aerodinamica e fluidodinamica.

Oltre 3000 articoli standard: valvole, raccordi, connettori e adattatori pneumatici, tubi di diverse dimensioni, forme e materiali, collanti e componenti per la distribuzione pneumatica, attrezzature specifiche per l'assemblaggio, …

Principali famiglie di accessori

• Tubazioni sintetiche Nylon, Teflon, Vinyl, Urethane

• Tubazioni acciaio inox

• Attrezzi per installazione tubi plastici

• Adattatori Tube/Pipe: da tubo plastico a 1/4 0 1/8, maschio o femmina

• Connettori pneumatici circolari fino a 73 vie, anche passa paratia

• Connettori pneumatici rettangolari: fino a 144 vie

• Connettori Quick Couplers per connessione e sconnessione rapida

• Valvole pneumatiche per calibrazione e spurgo

• Moduli di distribuzione pneumatica

• Contenitori di pressione statica per riferimento / calibrazione

Accessori pneumatici

Per test e sperimentazione aerodinamica e fluidodinamica

Prestazioni

Principali accessori

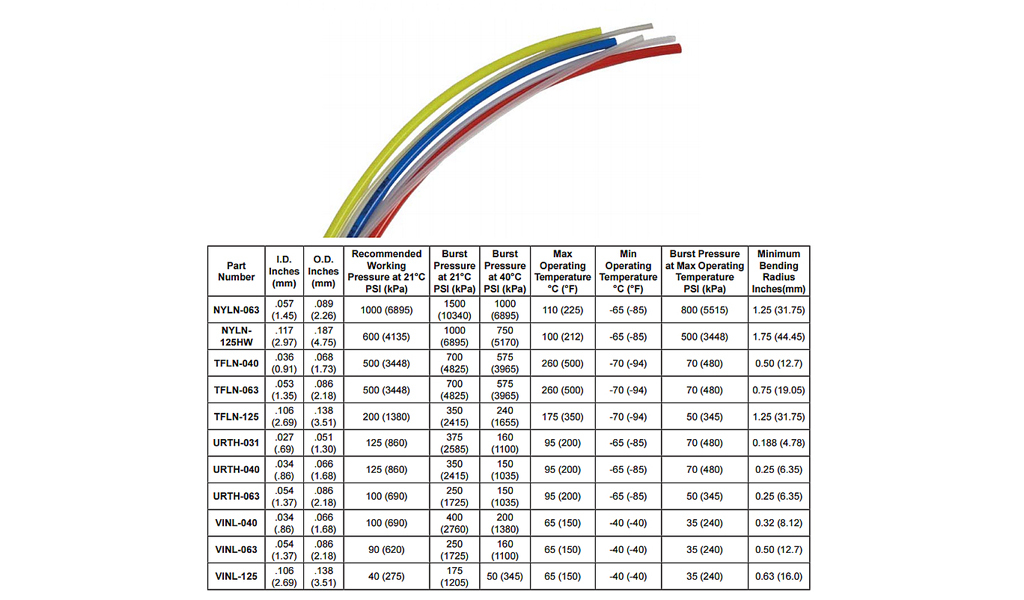

Plastic Tubing
Materials: Nylon, Teflon, Vinyl, Urethane
Tube sizes (I.D.):
.031 inch (0.79 mm), .040 inch (1.02 mm)
.063 inch (1.59 mm), .125 inch (3.18 mm)

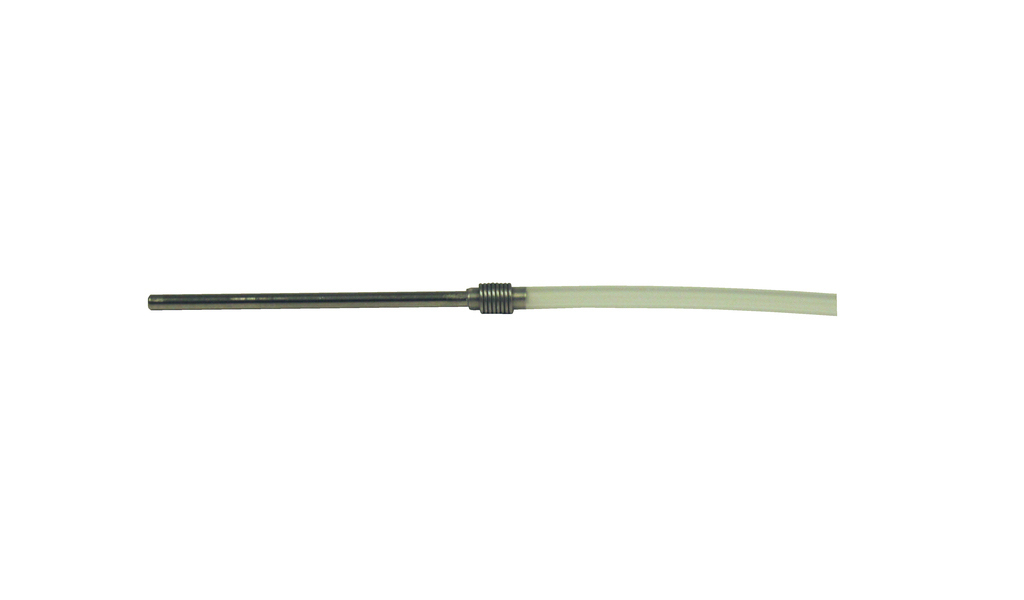

Tubing Clamps CLMP-XXX/NYCLMP-XXX
Clamps Scanivalve’s plastic tubing onto stainless steel tubulations
Brass and steel pressure clamps available

Tubulations

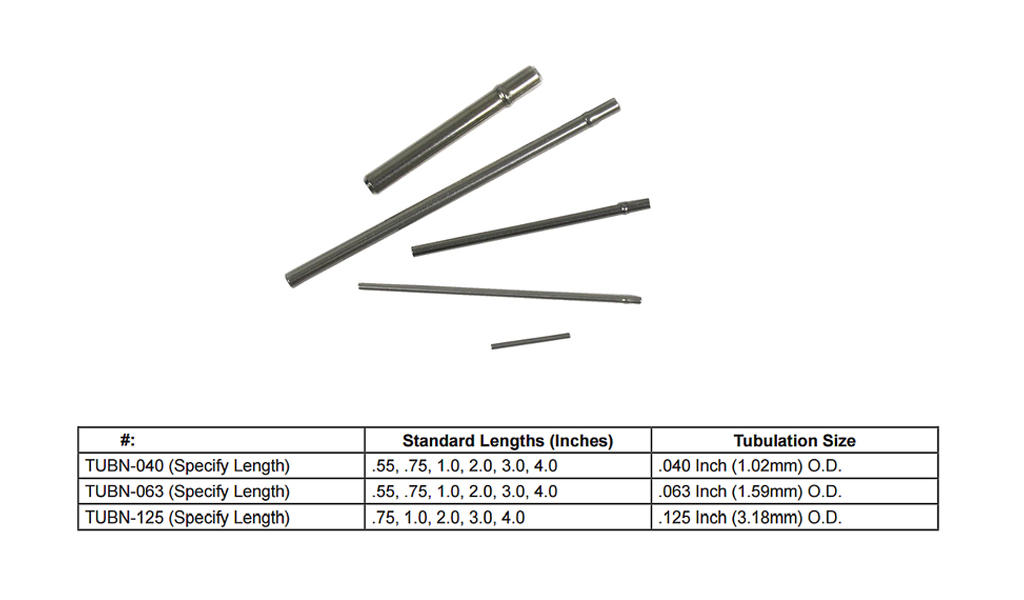

Bulged Stainless Steel tubulations for use with Scanivalve tubing.
Lengths: .55 inches up to 8.0 inches

Installation Tool PTCTL
PTCTL (Plastic tubing Cutting Tool) cleanly cuts nylon, urethane, vinyl and teflon tubing without distorting the tubing (fits .031 thru .125 inch tubing)

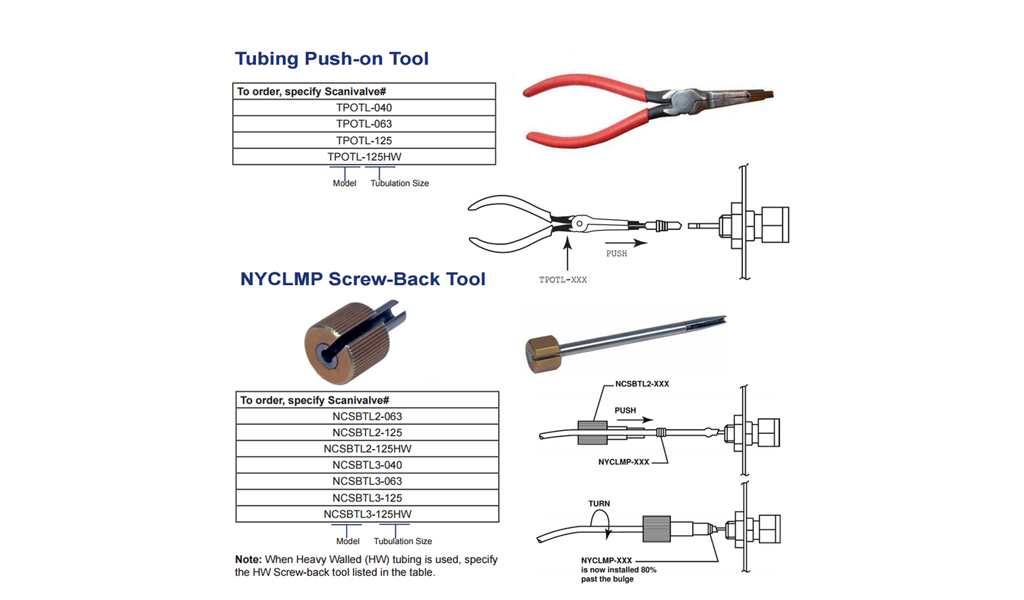

Installation Tools TPOTL-XXX
TPOTL (Tubing Push on Tool) pushes tubing over the steel tubulation bulge.

Installation Tools NCSBTL2&3-XXX
NCSBTL2 & 3 Nylon Screwback Tool for installing the NYCLMP springclamp over the steel tubulation bulge.

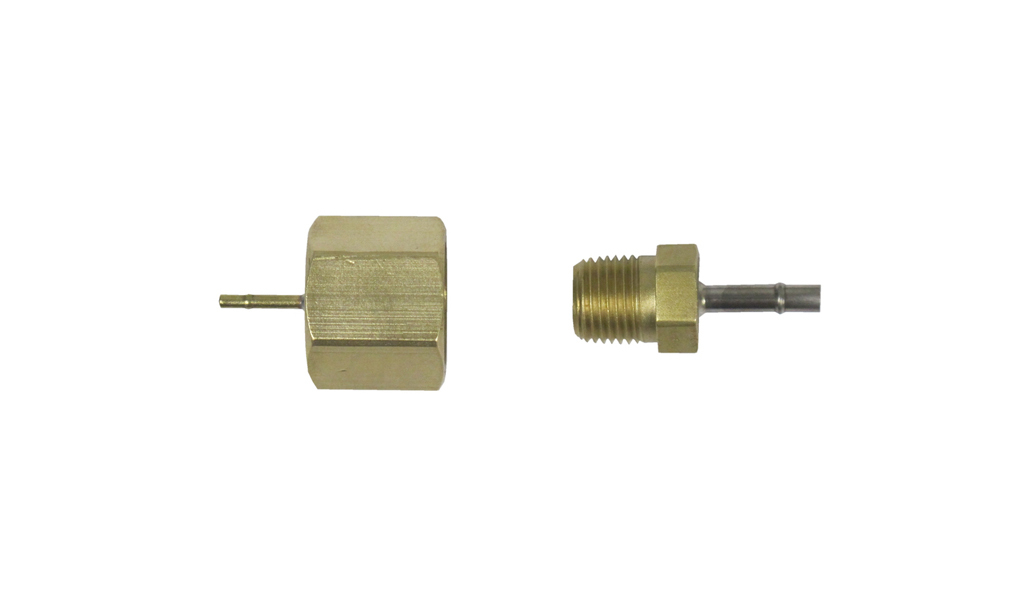

Tube/Pipe Connectors -TC
Connects small diameter plastic tubing with larger 1/8 inch and 1/4 inch MPT(male) or FPT(female) piping.

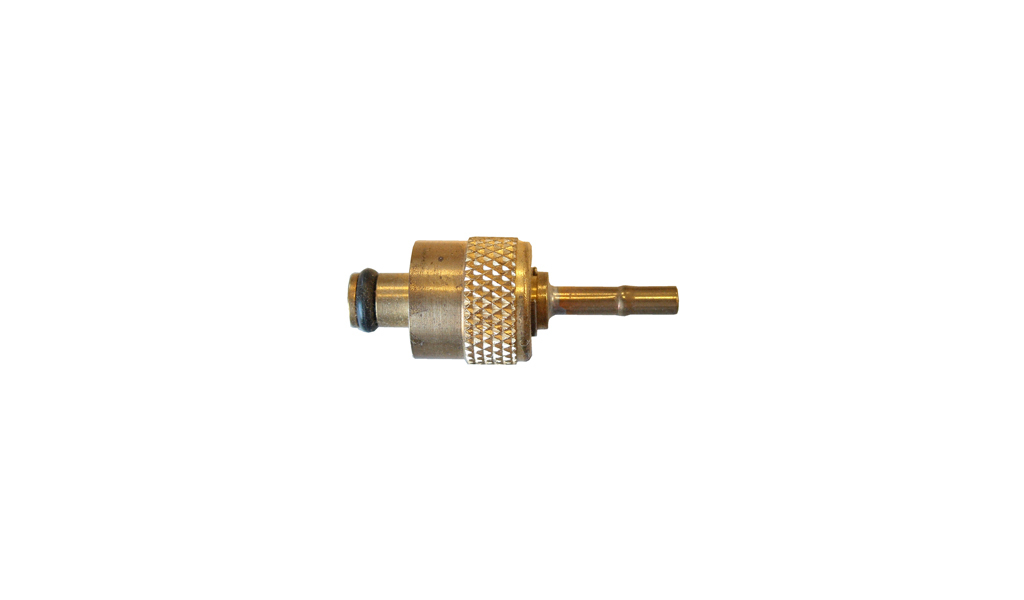

Tube Adaptors for Compression X-lok Fittings
Tube adaptors reduce 1/8 or 1/4 inch compression fittings to 1/16 inch or 1/8 inch tubulations. Hand tighten: leak tight seal without a wrench

Tube Connectors -TC
Tube Connectors come in many designs, sizes and colors.
Designs: X,TEE,CROSS, STRAIGHT THRU, REDUCER, and PLUG

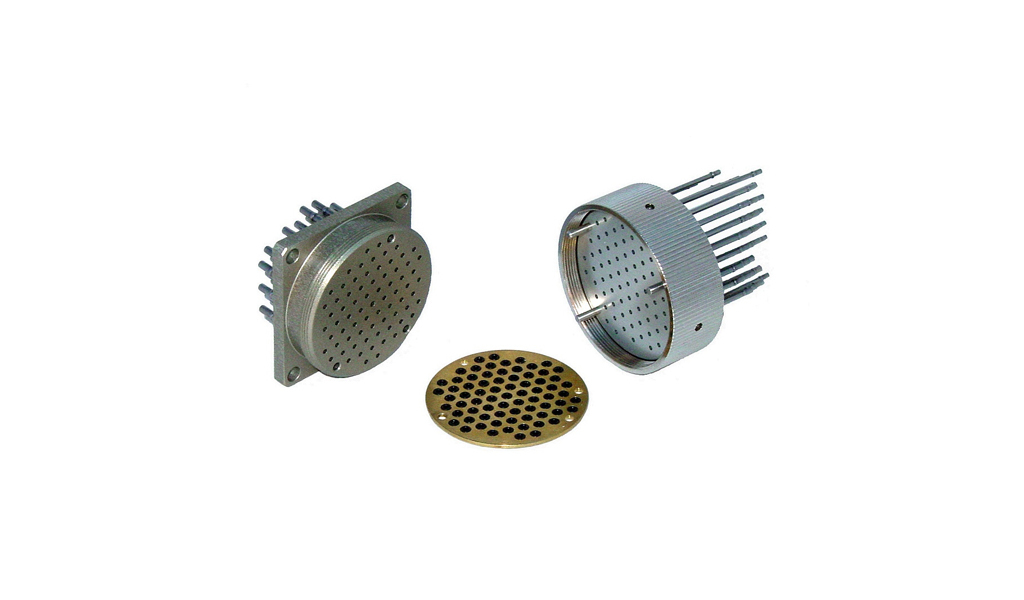

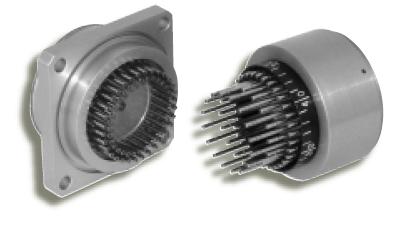

Round Pneumatic Connectors
Pneumatic quick disconnects
Tubulation Sizes: .040 inch up to .125 inches
No. of tubes per connector: 19 up to 73

High Pressure “L” Connectors 48L
Round connector accepts 48 each .063 inch steel tubes.
Maximum pressure: 1500 psi

Rectangular Pneumatic Connectors
8,10, or 12 tube rectangular pneumatic quick disconnects

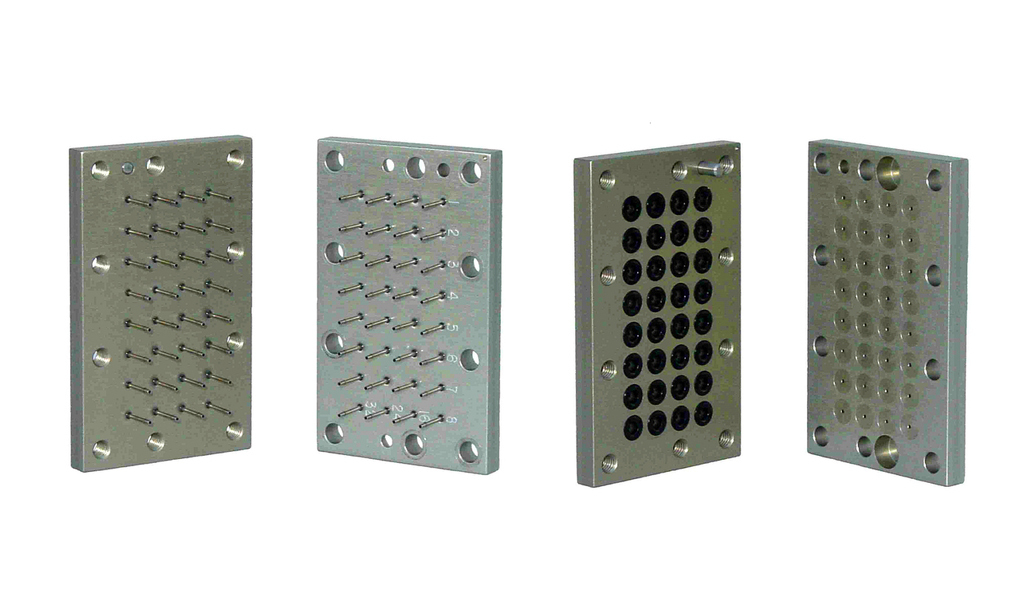

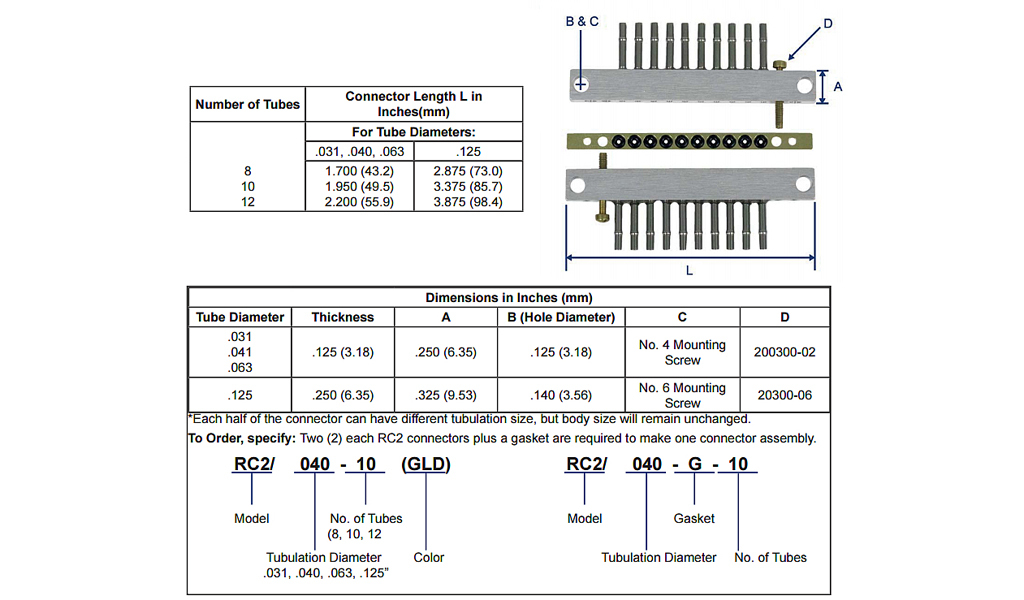

Rectangular Pattern Connectors RPC
This quick disconnect is panel mounted and contains stainless steel tubulations on both sides of the connector.
Different tubulation sizes can be on each side of the connector.
Pressure channels: 8 up to 144

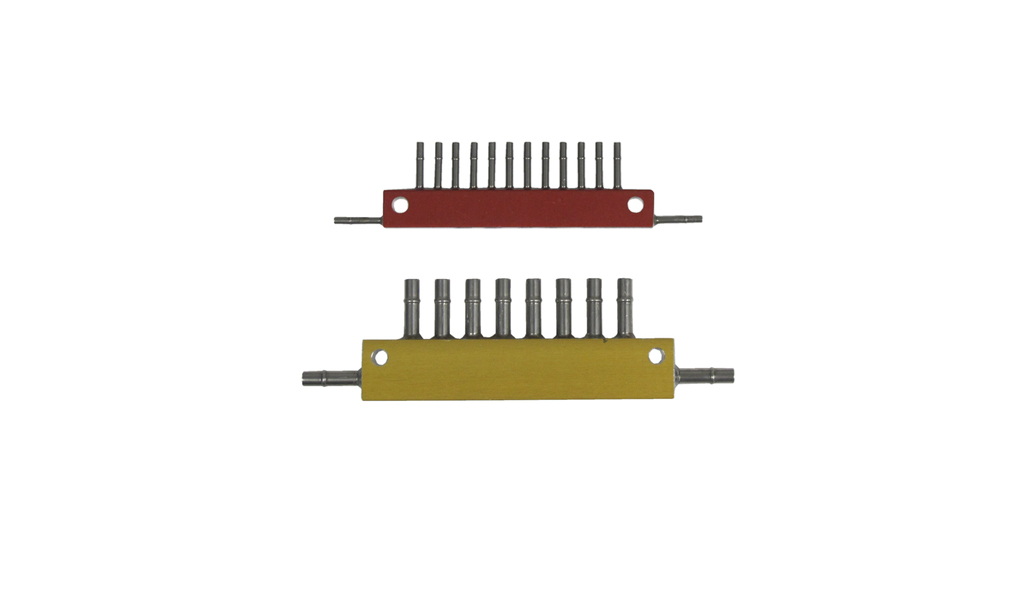

Pneumatic Manifolds -TC
These manifolds are available in single and double manifold designs.
Manifold lengths: 3 tubes up to 12 tubes (single). 4 tubes up to 24 tubes (double)

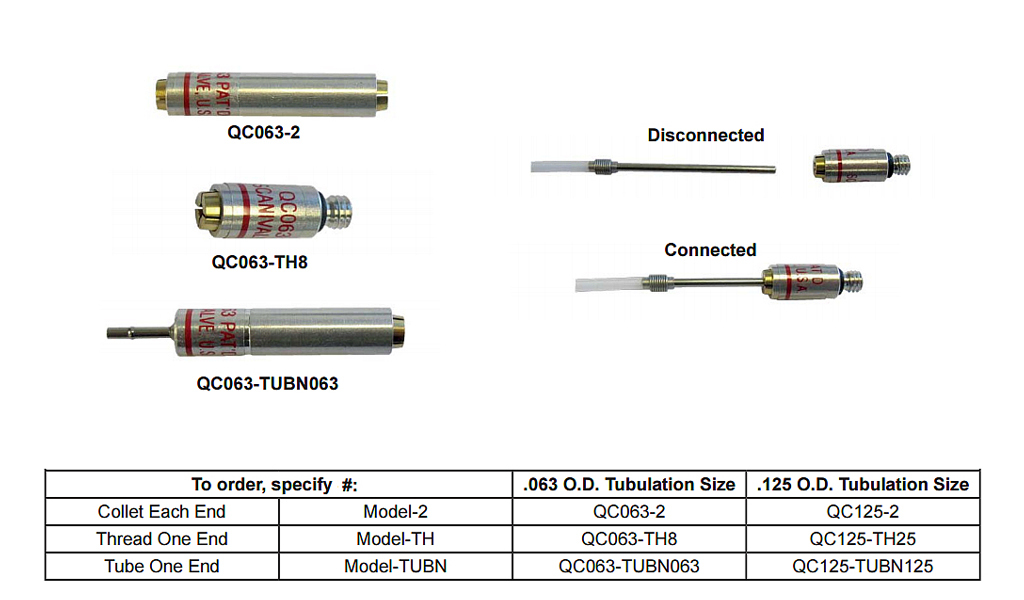

Quick Couplers -QC
Used where there is a need for changing pressure “hook-ups” easily.
Threaded and tubulation designs available

Special Pneumatic Connectors
Scanivalve manufactures other connectors not listed on this website, We have the capability to also supply special connectors to fit your requirements.

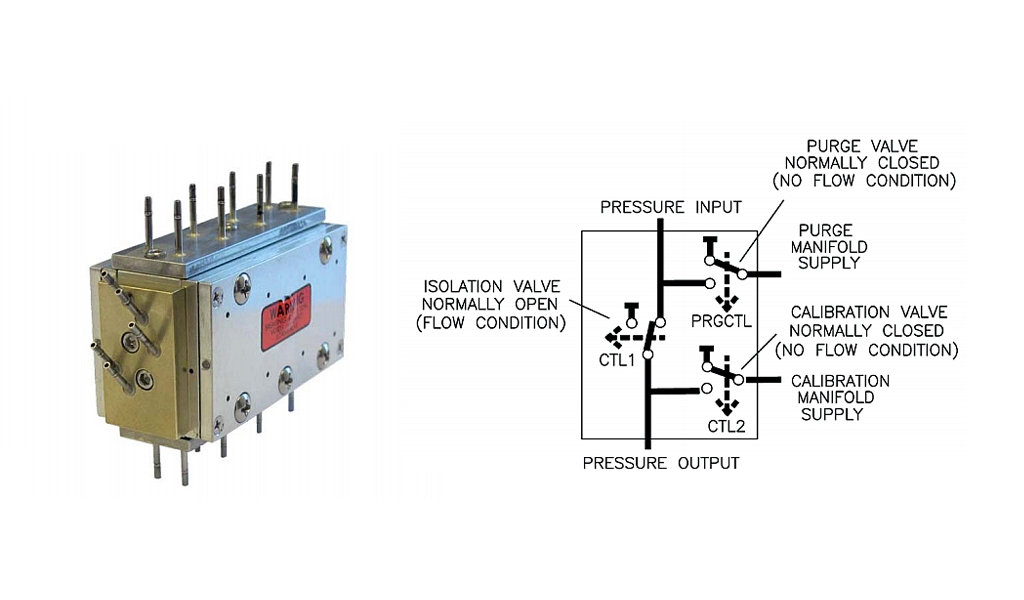

Pneumatic Calibration/Purge Valve
A 3 way 8 channel pneumatic valve (8P-3T) that can be used in series with individual pressure transducers. Allows the user to purge the pressure input lines. It also can manifold all of the transducers for easy zero and span calibrations at one time.

Pneumatic Distribution Module
This product incorporates 2 up to 5 pressure regulators for applying and setting pressures manually on large pressure measurement systems.
Design: Panel mount or 19 inch rack mount.

Pressure Static Basket
This product provides a well dampened static reference pressure for calibrations or measurements of 1 psi and less pressures. It nulls out the effects of air conditioning systems, wind, etc.

Nota: i dati riportati in questa tabella sono di semplice riferimento, possono contenere errori, non essere aggiornati e/o subire modifiche in qualsiasi momento; per un'informazione più accurata è necessario fare riferimento al datasheet del prodotto.
